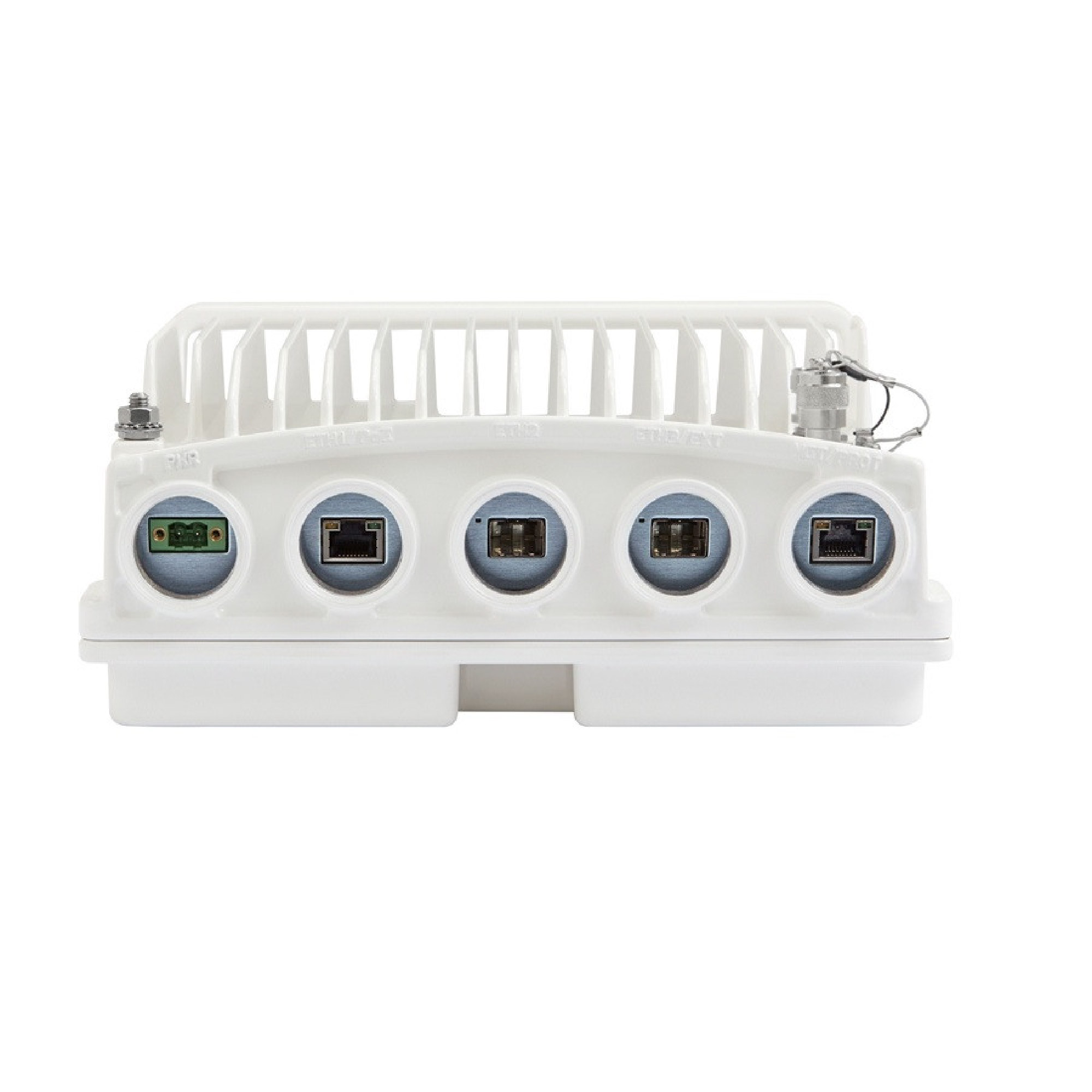

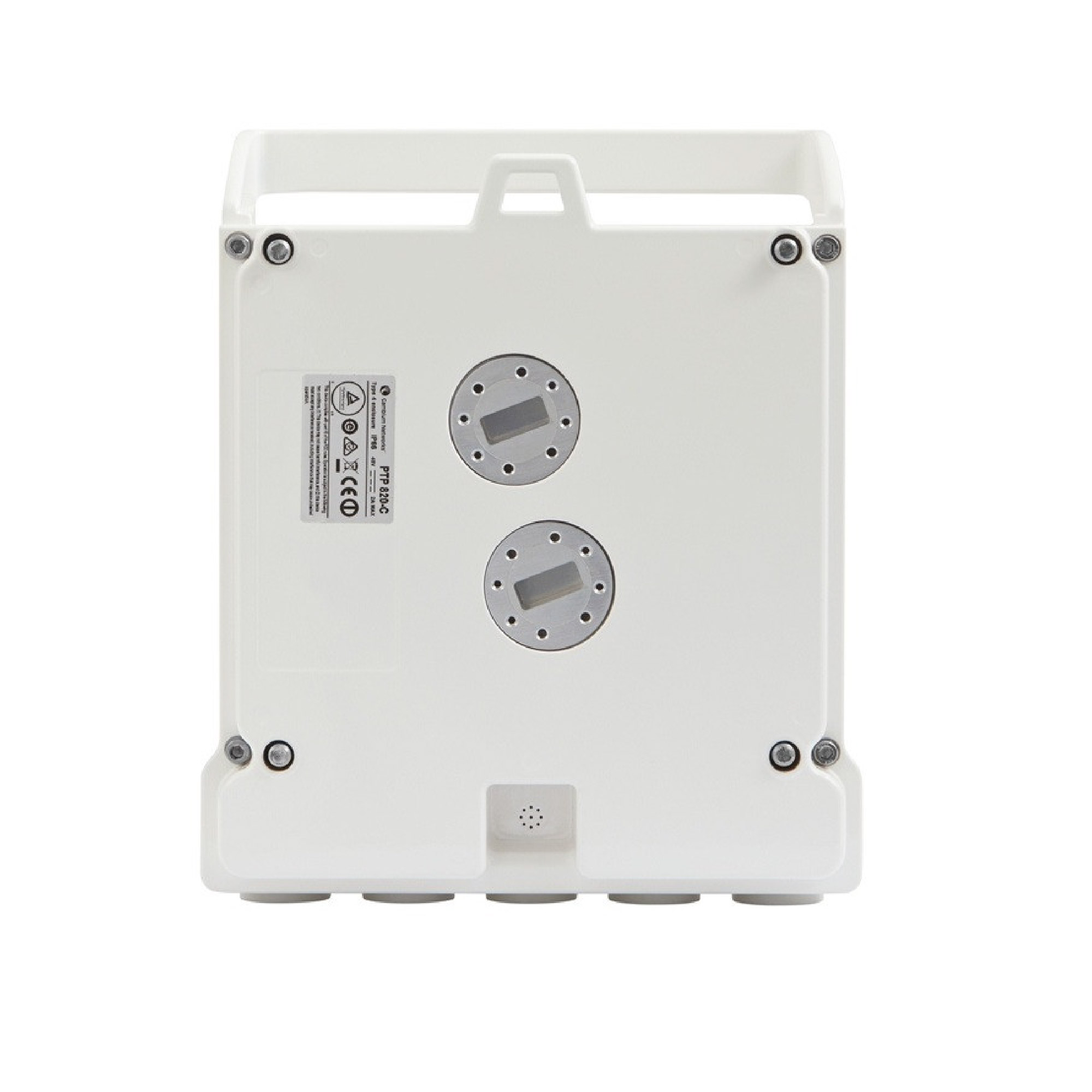

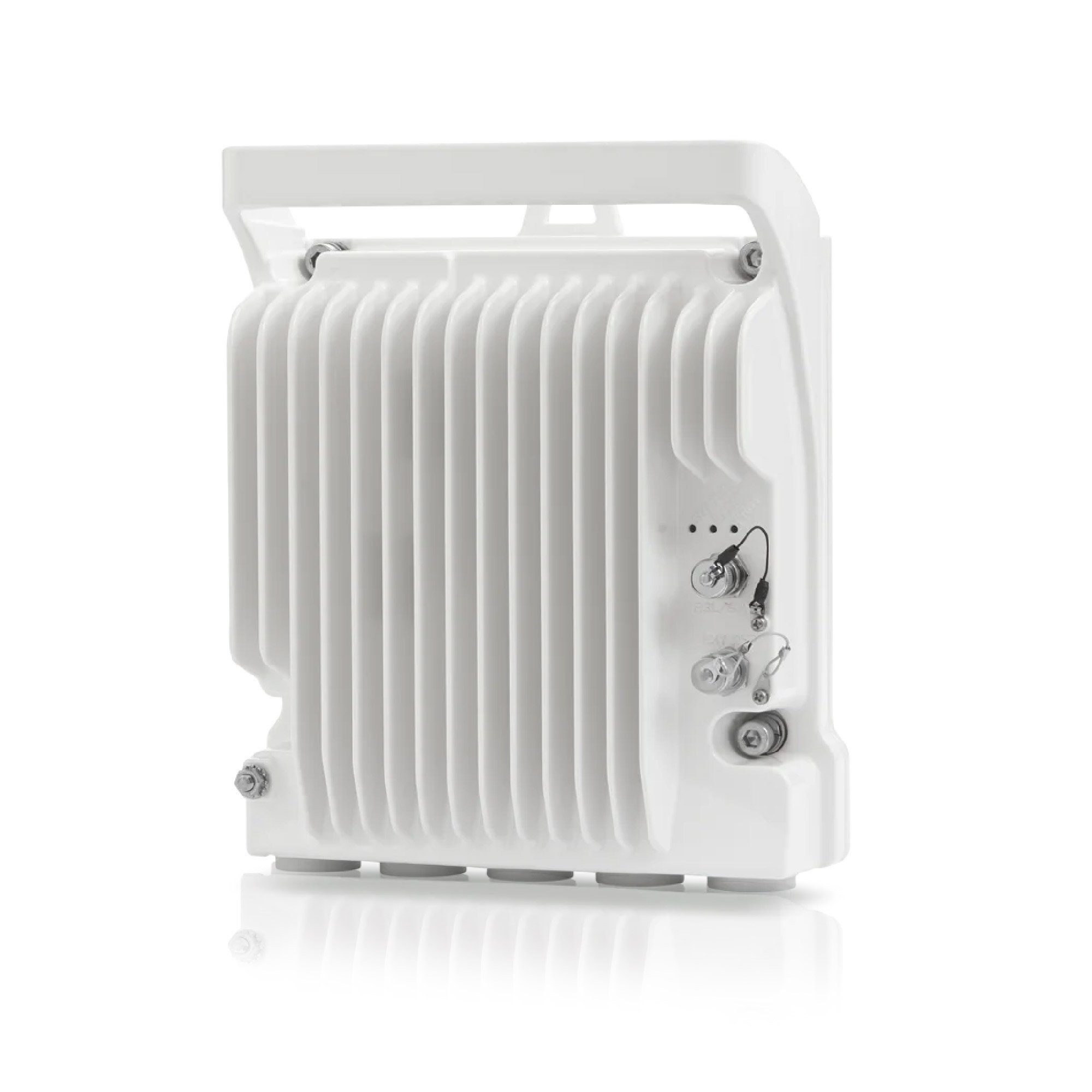

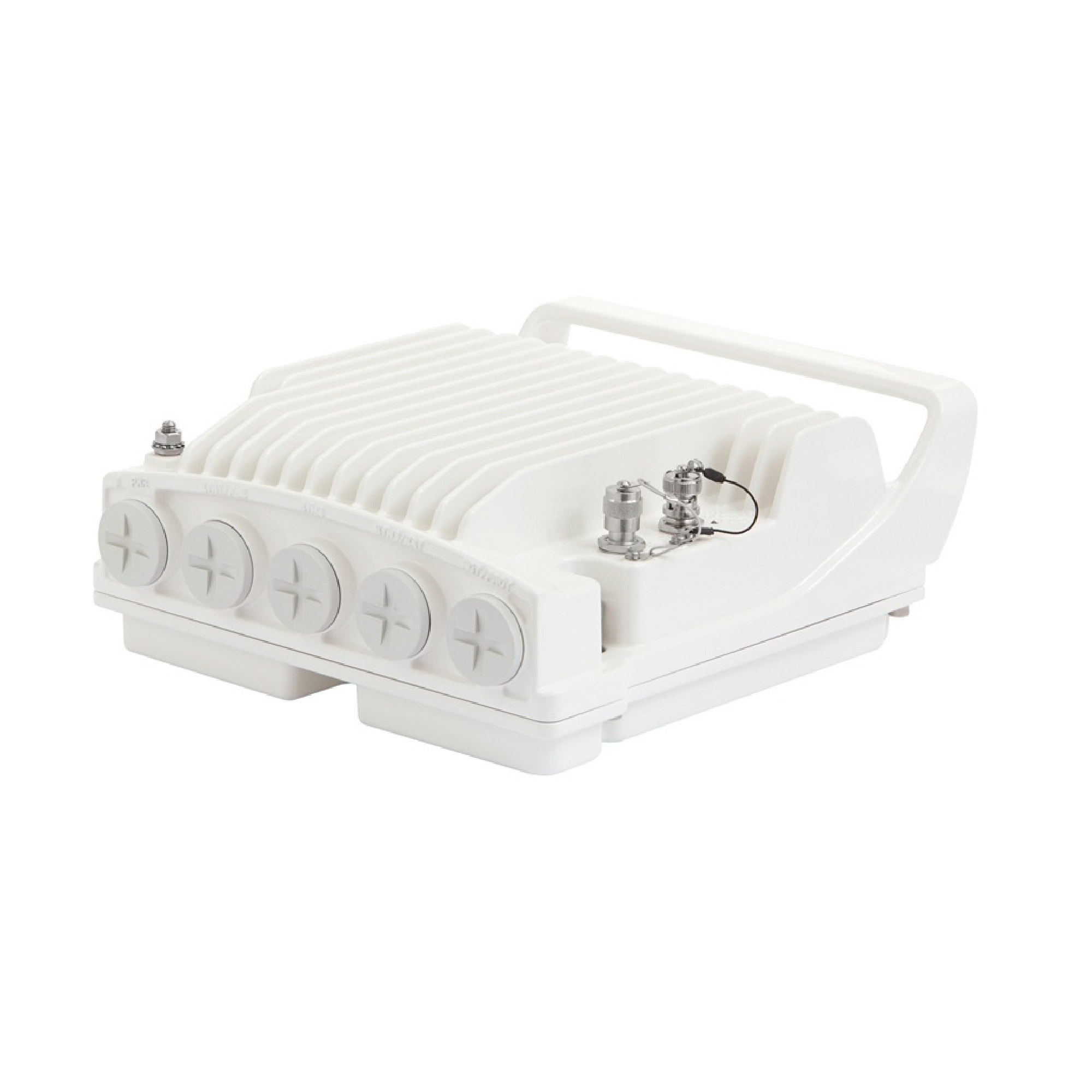

Microwave radio licensed PTP 820C

Highlights of the PTP 820 product series

• Authorized frequency bands 6-42GHz
• Up to 2048 QAM, with 11-step adaptable encoding and modulation (ACM) without errors and without errors for high reliability
• Supports up to 80 MHz bandwidth
• Radio capacity of several gigabits with high spectral efficiency
• TDM and / or packages that support inherited services and evolution to all packages
• Integrated Ethernet switch, compatible with MEF Carrier Ethernet 2.0, prepared for MPLS-TP
• De- duplication of headers to increase additional capacity
• Intelligent service-focused management using hierarchical QoS and advanced OA & M capabilities
• Service resistance operator level (G.8032, MSTP)
• UIT-T Y. 1731 Performance management - MEF 35
• Integrated synchronization solution: Native / SyncE / IEEE 1588v2
• Minimum energy consumption with adaptive green mode
• Low latency with single frame cutting for latency sensitive services
• Winning the leading system in the industry
